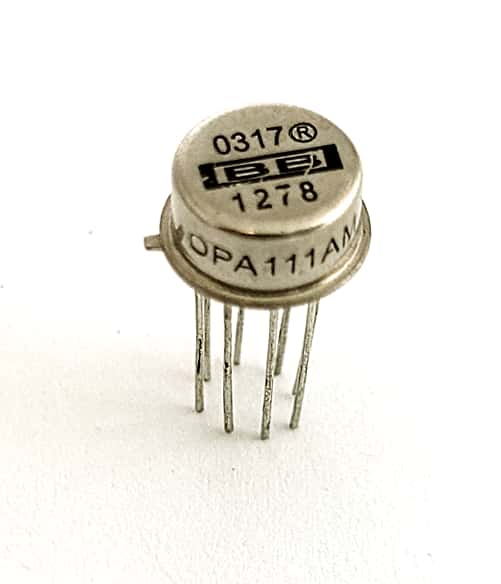

OPA111AM Operational Amplifier IC Low Noise Op Amp Burr Brown®

OPA111AM Operational Amplifier IC Low Noise Op Amp Burr Brown®

Manufacturer: Burr Brown®
Part Number: OPA111AM
Amps: .0025
Voltage: 15
Package: TO-99
Mounting: Through Hole
Number Leads/Terminals: 8
Color: Silver
Temperature: -25 to 85°C
RoHS Compliant: Yes
Obsolete: Yes
Termination Method: Solder

Price: $30.00
30 available for immediate delivery
Code: T421BPV05
Weight: 0.02oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Precision Difet® Operational Amplifier
OBSOLETE

Features:
- Low Noise
- Low Bias Current
- Low Offset
- Low Drift
- High Open-Loop Gain
- High Common-Mode Rejection

Typical Electrical Specs(VCC=+/- 15V and TA=25°C unless otherwise noted):

Noise
- Voltage (fo=10Hz): 40nV/√Hz
- Current (fB=0.1Hz to 10Hz): 9.5fAp-p
Offset Voltage
- Input Offset Voltage (VCM = 0VDC): +/- 100.0uV
- Average Drift (TA = TMIN to TMAX): +/- 2.0uV/°C
- Supply Rejection (VCC = +/- 10V to +/- 18V): 110dB
Input Bias Current (VCM = 0VDC): +/- 0.8pA
Input Offset Current (VCM = 0VDC): +/- 0.5pA
Open Loop Voltage Gain (RL ≥ 2kΩ): 125dB
Voltage Output (RL = 2kΩ): +/- 12.0V
Current Output (VO = +/- 10VDC): +/- 10.0mA
Output Resistance (DC, Open Loop): 100Ω
Load Capacitance Stability (Gain=1): 1000pF
Rated Voltage: +/- 15V
Quiescent Current: 2.5mA
Temperature: -25 to 85°C

Applications:
- Precision Instrumentation
- Data Communication
- Test Equipment
- Optoelectronics
- Medical Eqipment-CAT Scanner
- Radiation Hard Equipment

Manufactured by: Burr Brown®
Part Number: OPA111AM

Full Datasheet: Burr Bown® OPA111 Series Op Amps

RoHS Compliant
