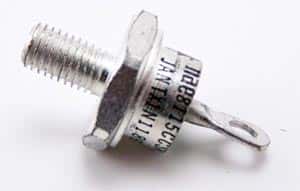

1N1186R JANTX1N1186R Military Rectifier Diode

1N1186R JANTX1N1186R Military Rectifier Diode

Manufacturer: NAE
Part Number: 1N1186R
Amps: 35
Voltage: 200

Price: $255.50
22 available for immediate delivery
Code: T456PD
Volume Pricing
Quantity Price Each
1-9$255.50
10+$240.75
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information


Military Rectifier Diodes
Does Not Come with Mounting Hardware
DO203AB (DO5) Package
Glass Passivated Die
Glass to Metal Seal Construction
Reverse Polarity: Stud is Anode

Dimensions
- Height: .453 in (11.5mm)
- Width (at widest area): .793 in. (20.14mm)

Approximate Specs:
Peak Reverse Voltage: 200V
Forward Current: 35A
- (TC=150°C, half sine wave,R(OJC)=0.8°C/W)
Maximum Surge Current: 500A
-(8.3ms, half sine, TJ=150°C)
Max I2t for Fusing: 1100A^2s
Max Peak Forward Voltage: 1.4V
-(IFM=110A, 25°C, Pulse Width 300µs, Duty Cycle 2%)
Max Peak Forward Voltage: 2.3V
-(IFM=500A, 25°C)
Max Peak Reverse Current: 10µA
-(VRRM, TJ=25°C)
Max Peak Reverse Current: 1.0mA
-(VRRM, TJ=150°C, Pulse Width 300µs, Duty Cycle 2%)
Max Recommended Operating Frequency: 10kHz
Storage & Operating Temperature: -65°C to 175°C

Manufactured by: NAE
Part number: JANTX1N1186R
