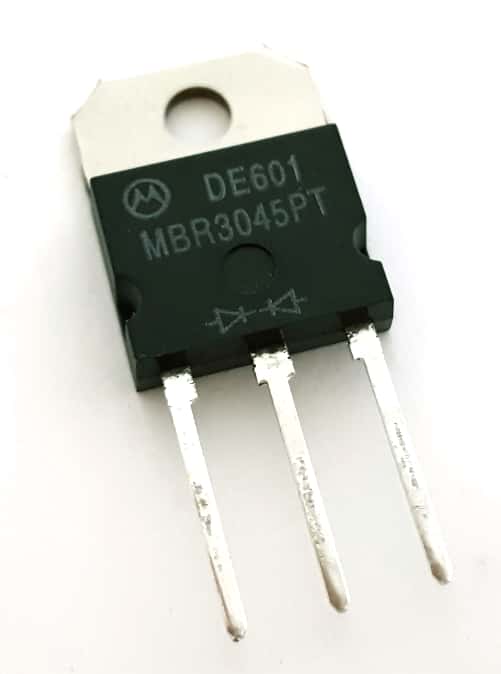

MBR3045PT 30A 45V Switchmode Power Rectifier Diode Motorola

MBR3045PT 30A 45V Switchmode Power Rectifier Diode Motorola

Manufacturer: Motorola
Part Number: MBR3045PT
Amps: 30
Voltage: 45
Package: 340D-02
Number Leads/Terminals: 3

Price: $5.10
47 available for immediate delivery
Code: T487PE01
Weight: 0.02oz ONZ
Volume Pricing
Quantity Price Each
1-9$5.10
10+$4.80
