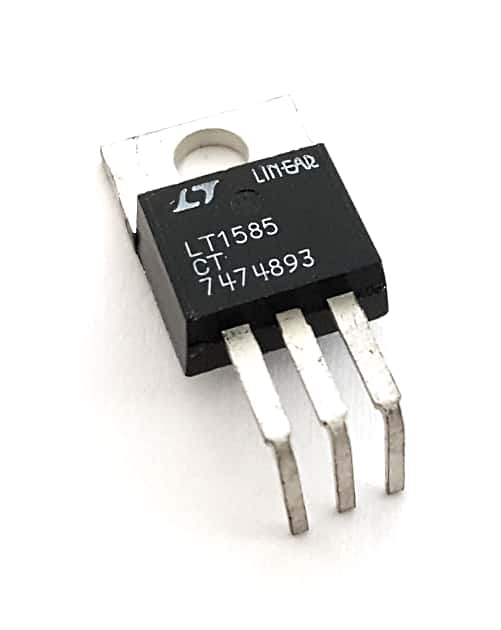

LT1585CT 4.6A Low Dropout Voltage Regulator Linear Technology

LT1585CT 4.6A Low Dropout Voltage Regulator Linear Technology

Manufacturer: Linear Technology
Part Number: LT1585CT
Amps: 4.6
Package: TO-220
Number Leads/Terminals: 3

Price: $7.20
195 available for immediate delivery
Code: T490PE02
Volume Pricing
Quantity Price Each
1-9$7.20
10-99$6.85
100+$6.20
