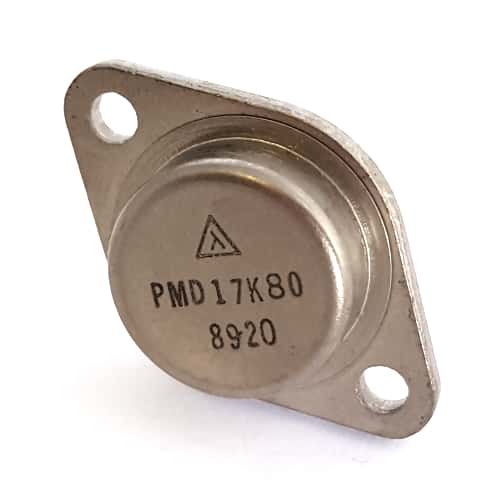

PMD17K80 PMD17K 20A 80V Darlington Transistor Lambda®

PMD17K80 PMD17K 20A 80V Darlington Transistor Lambda®

Manufacturer: Lambda®
Part Number: PMD17K80
Capacitance (uF): .0004
Amps: 20
Voltage: 80
Watts: 225
Package: TO-3
Mounting: Through Hole
Lead/Terminal Type: Radial
Number Leads/Terminals: 2
Color: Silver
Temperature: -65 to 200°C
Termination Method: Solder

Price: $10.00
175 available for immediate delivery
Code: T514PE04
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

PNP Darlington Transistors

The PMD 17K series of Darlington transistors are monolithic epitaxial base structures that have built in base to emitter shunt resistors. Increased reliability and reduced high temperature reverse leakage are ensured with the CVD glass passivated design. The hermetically sealed TO-3 package adds to the high reliability as well as providing low thermal resistance.

MAX Ratings
Collector Emitter Voltage: 80.0V
Collector Base Voltage: 80.0V
Emitter Base Voltage: 5.0V
Collector Current
- Continuous: 20.0A
- Peak: 40.0A
Base Current: 0.50A
Total Power Dissipation: 225W
Operating Temperature: -65 to 200°C

ON
Collector Emitter Saturation Voltage: 2.0V max.
Base Emitter Turn-On Voltage: 2.8V max.
Base Emitter Saturation: 2.8V max.
DC Current Gain: 800 min.; 20,000 max.
Forward Bias Secondary Breakdown Current: 7.5A min.

OFF
Collector Emitter Breakdown Voltage: 80V min.
Collector Emitter Sustaining Voltage: 80V min.
Emitter Base Leakage Current; 3.0mA max
Collector Emitter Leakage Current: 7.0mA max.

DYNAMIC (TJ=25°C)
Output Capacitance: 400pF max.
Small Signal Current Gain: 300 min.
Common Emitter Short Circuit Forward Transfer Ration: 4 min.

Manufactured by: Lambda®
Part Number: PMD17K80

Full Datasheet: PMD17K80
