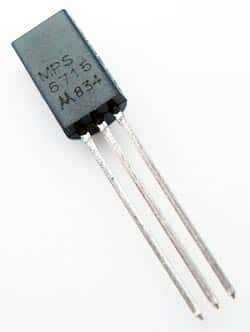

MPS6715 1W Amplifier Transistor Motorola

MPS6715 1W Amplifier Transistor Motorola

Manufacturer: Motorola
Part Number: MPS6715
Watts: 1
Package: TO-92
Number Leads/Terminals: 3

Price: $0.95
260 available for immediate delivery
Code: T565PF01
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.95
10-99$0.90
100+$0.85
