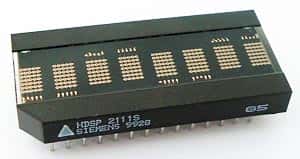

8 Character 5 x 7 Dot Matrix Parallel Input Display Siemens HDSP2111S

8 Character 5 x 7 Dot Matrix Parallel Input Display Siemens HDSP2111S

Manufacturer: Siemens
Part Number: HDSP2111S
Package: DIP
Number Leads/Terminals: 26
Color: Yellow

Price: $24.50
Sorry, we are currently sold out of
'8 Character 5 x 7 Dot Matrix Parallel Input Display Siemens HDSP2111S'.
Please check back later.
Code: T572PF02
Weight: 0.20oz ONZ
Volume Pricing
Quantity Price Each
1-9$24.50
10+$20.50
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Dot Matrix Parallel Input Displays
Alphanumeric
8 Digit
5 x 7 Dot Matrix
Character Height: 0.20"
Color: Yellow

Features:
Built in 128 Character ROM, Mask Programmable for Custom Fonts
Readable from 8 feet
Built in Decoders, Multiplexers and Drivers
Programmable Features:
- Individual Flashing Character
- Full display Blinking
- Multi-Level Dimming and Blanking
- Clear Function
- Self Test
Read/Write Capability
16 User Definable Characters

Optical Characteristics:
Peak Luminous Intensity: 130ucd/dot min. ; 210ucd/dot typ.
Peak Wavelength: 583nm
Dominant Wavelength: 585nm
Viewing Angle:
- X Axis: 55�
- Y Axis: 65�

Recommended Operating Conditions:
Supply Voltage: 4.5v to 5.5V
Input Voltage Low: 0.8V max.
Input Voltage High: 2.0V min.
Output Voltage Low: 0.4V max.
Output Voltage High: 2.4V min.

Dimensions:
42.67mm x 19.58mm x 5.31mm (1.68" x 0.771" x 0.209")

Manufactured by: Siemens
Part Number: HDSP2111S

Full Datasheet: HDSP2111S
