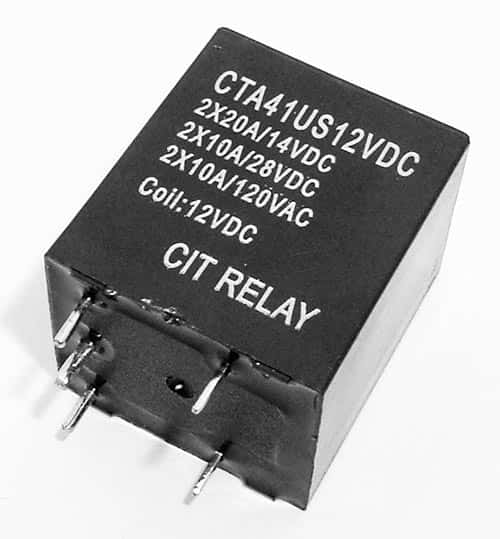

20A 12 VDC SPST N.O. Relay CIT CTA41US12VDC

20A 12 VDC SPST N.O. Relay CIT CTA41US12VDC

Manufacturer: CIT Relay & Switch
Part Number: CTA41US12VDC
Amps: 20
Voltage: 12
Mounting: PCB
Number Leads/Terminals: 5
Color: Black
Temperature: 85
Shape: Rectangle
Termination Method: Solder

Price: $5.00
72 available for immediate delivery
Code: T633APL05
Weight: 0.30oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

SPST Sealed Relays

Features:
- Low coil power consumption
- Small size and light weight
- Switching current up to 20A
- Suitable for household appliances, automotive applications

GENERAL DATA:
Electrical Life @ rated load: 100K cycles, typical
Mechanical Life: 10M cycles, typical
Insulation Resistance: 100MΩ min. @ 500VDC
Dielectric Strength:
- Coil to Contact 1500V rms min. @ sea level
- Contact to Contact 750V rms min. @ sea level
Shock Resistance 100m/s2 for 11 ms
Vibration Resistance 1.27mm double amplitude 10~40Hz
Operating Temperature -40°C to 85°C
Storage Temperature -40°C to 155°C
Solderability 230°C for 10 s

CONTACT DATA:
Arrangement: 1U SPST N.O.
Resistance: <30 milliohms initial
Material: AgSnO2
Switching Power: 2 x 280W max.
Switching Voltage: 380VAC, 75VDC max.
Switching Current: 20A max.
Rating (printed on relay): 2 x 20A / 14VDC
Rating (printed on relay): 2 x 10A / 28VDC
Rating (printed on relay): 2 x 10A / 120VAC

COIL DATA (DC Parameters)
Voltage:
- Rated: 12.0VDC
- Maximum: 15.6VDC
Resistance: 145 ohm +/- 10%
Pick up Voltage: 9.0VDC max
Release Voltage: 1.2VDC min.
Power: 1.0W
Operate Time: 10ms
Release Time: 5ms

Dimensions
Length: 16.9mm (0.67")
Width: 14.5mm (0.57")
Height: 19.5mm (0.77")

Manufactured by: CIT Relay & Switch
Part Number: CTA41US12VDC

Full Datasheet: CIT PCB Mount Relay 20.0A 12.0VDC
