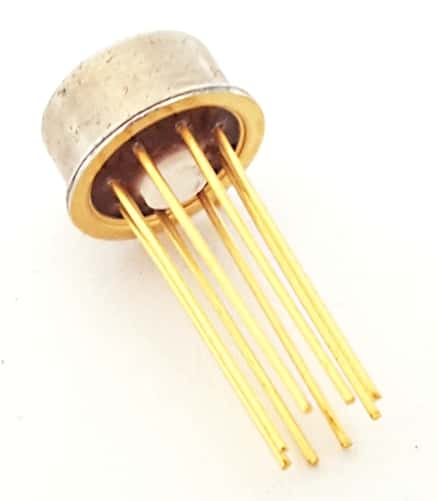

JM38510/10101BGC General Purpose Op Amp MIL Fairchild
Manufacturer: FairchildĀ®
Part Number: JM38510/10101BGC
Amps: .0000015
Voltage: 22
Watts: .5
Package: TO-5
Mounting: Though Hole
Number Leads/Terminals: 8
Color: Silver / Gold
Temperature: 125
Obsolete: Yes
Military Spec: Yes
Shape: Metal Can
Termination Method: Solder
Price: $25.00
8 available for immediate delivery
Code: T673APP11
Weight: 0.10oz
Additional Information
Military Operational AmplifiersGold Plated Leads
Obsolete
Maximum Ratings
Supply Voltage: 22.0V
Power Dissipation: 500mW
Differential Input Voltage: +/- 30.0V
Operating Temperature Range: -55 to 125 Deg. C.
Input Bias Current: 1.5uA
Slew Rate-Nom: 0.5 V/us
Input Resistance: 2.0 megohm
Unity Gain BW-Nom: 1000 kHz
Manufactured by: Fairchild
Part Number: JM38510/10101BGC
For reference only, we are providing a datasheet for this part number. Please note that this is from a different manufacturer. West Florida Components assumes no liability for this information.
Full Datasheet: Fairchild Military Metal Can Op Amp JM38510
