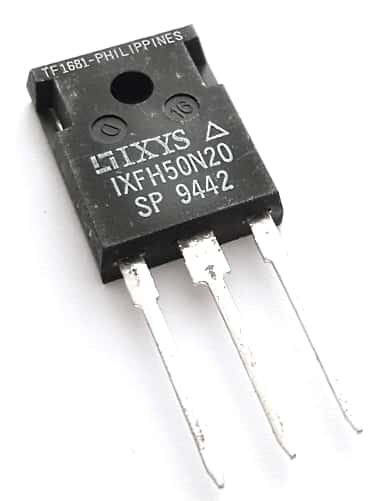

IXFH50N20 50A 200V N-Channel Power MosFET Transistor IXYS

IXFH50N20 50A 200V N-Channel Power MosFET Transistor IXYS

Manufacturer: IXYS
Part Number: IXFH50N20
Amps: 50
Voltage: 200
Watts: 300
Ohms: .045
Package: TO-247
Mounting: Through Hole
Lead/Terminal Type: Straight
Number Leads/Terminals: 3
Color: Black
Temperature: 150
RoHS Compliant: Yes
Termination Method: Solder

Price: $10.00
3 available for immediate delivery
Code: T684APP12
Weight: 0.10oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Power MOSFET Transistors
N-Channel

Features:
- International standard packages
- Low RDS (on) HDMOSTM process
- Rugged polysilicon gate cell structure
- Unclamped Inductive Switching (UIS) rated
- Low package inductance (easy to drive and to protect)
- Fast intrinsic Rectifier

Drain to Source Voltage: 200V
Current-Continuous Drain (Id) @ 25 Deg.C: 50.0A
Drive Voltage (Max Rds On, Min Rds On): 10.0V
Vgs(th) (Max) @ Id: 4.0V @ 4.0mA
Gate Charge (Qg) (Max) @ Vgs: 220nC @ 10.0V
Input Capacitance (Ciss) (Max) @ Vds: 4400pF @ 25V
Vgs (Max): +/-20V
Power Dissipation: 300W
Rds On (Max) @ Id, Vgs: 45.0milliohm @ 25A, 10V
Operating Temperature: -55 to 150 Deg. C.

Manufactured by: IXYS
Part Number: IXFH50N20

Full Datasheet: IXYS HiPerFET (TM) MosFET Transistor 200V 50A

RoHS Compliant
