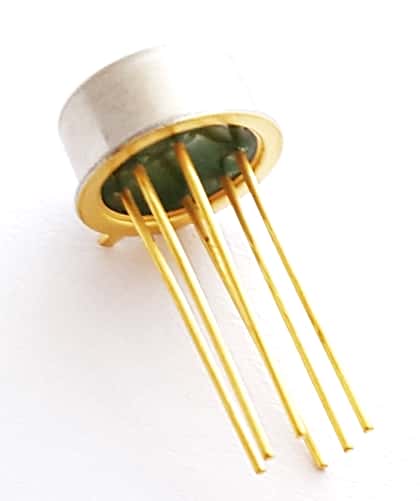

JANTX4N23A 4N23A 1KV Optically Coupled Isolator Transistor MIL Optek

JANTX4N23A 4N23A 1KV Optically Coupled Isolator Transistor MIL Optek

Manufacturer: Optek
Part Number: JANTX4N23A
Capacitance (uF): 5
Amps: .05
Voltage: 1000
Package: TO-78
Mounting: Through Hole
Number Leads/Terminals: 6
Temperature: 125
Termination Method: Solder

Price: $20.00
Sorry, we are currently sold out of
'JANTX4N23A 4N23A 1KV Optically Coupled Isolator Transistor MIL Optek'.
Please check back later.
Code: T688APP12
Weight: 0.10oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Optoisolator Transistors with Base
Obsolete
MIL-PRF-19500

Features:
- TO-78 hermetically sealed package
- Gold Plated Leads
- High current transfer ratio
- 1 kV electrical isolation
- Base contact provided for conventional transistor biasing

INPUT DIODE
Forward DC Current: 40mA
Reverse DC Voltage: 2.0V
Peak Forward Current (1 µs pulse width, 300 pps): 1.0A
Power Dissipation: 60mW
OUTPUT PHOTOSENSOR
Continuous Collector Current: 50mA
Collector-Emitter Voltage: 40V
Collector-Base Voltage: 45V
Emitter-Base Voltage: 4.0V
Power Dissipation: 300mW

Electrical Characteristics (TA=25 Deg. C unless otherwise noted):
INPUT DIODE
Forward Voltage (IF = 10 mA): 1.5V max.
Reverse Current (VR = 2 V): 100uA max.

OUTPUT PHOTOTRANSISTOR
Collector-Emitter Breakdown Voltage (IC = 100 mA, IB= 0, IF= 0 ): 40V min.
Collector-Emitter Dark Current (VCE = 20 V, IB= 0, IF= 0 ): 100nA max.

COUPLED
On-State Collector Current (IF = 2.0 mA , VCE = 5 V, IB = 0): 0.20mA
Collector-Emitter Saturation Voltage (IF = 20 mA , IC = 5.0 mA, IB = 0): 0.30V
DC Current Gain (VCE = 5.0 V , IC = 10.0 mA, IF = 0 mA): 100V (min.)
Capacitance (Input-to-Output) (VI-O = 0 V, f = 1.0 MHz): 5.0pF (max)
Output Rise and Fall Time (VCC = 10.0 V , IF = 10.0 mA, RL = 100 ohm): 20.0uS

Applications:
- High-voltage isolation between input and output
- Electrical isolation in dirty environments
- Industrial equipment
- Medical equipment
- Office

Manufactured by: Optek
Part Number: JANTX4N23A

Full Datasheet: 1,000V 1 Channel Military Optoisolator Transistors
