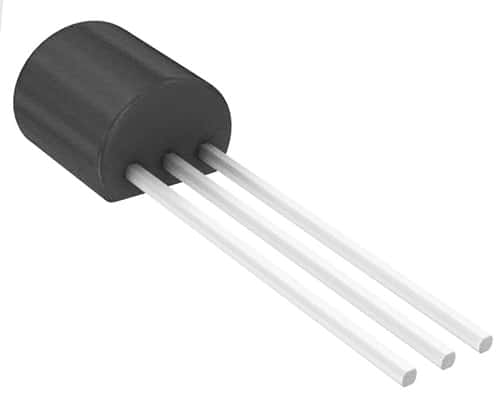

MPS6514 0.2A 25V NPN General Purpose Transistor National Semiconductor

MPS6514 0.2A 25V NPN General Purpose Transistor National Semiconductor

Manufacturer: National Semiconductor
Part Number: MPS6514
Amps: .2
Voltage: 25
Watts: .625
Mounting: Through Hole
Lead/Terminal Type: Straight
Number Leads/Terminals: 3
Color: Black
Temperature: 150
Obsolete: Yes
Termination Method: Solder

Price: $0.25
141 available for immediate delivery
Code: T707APP12
Weight: 0.01oz ONZ

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Bipolar NPN Transistors
Obsolete

Maximum Ratings
Collector-Emitter Voltage: 25.0V
Collector-Base Voltage: 40.0V
Emitter-Base Voltage: 4.0V
Collector Current-continuous: 200mA
Junction and Storage Temperature: -55 to 150 Deg. C.

Electrical Characteristics -

OFF Characteristics
Collector-Emitter Breakdown Voltage: 25.0V
Collector-Base Breakdown Voltage: 40.0V
Emitter-Base Breakdown Voltage: 4.0V
Collector Cutoff Current (VCE = 30V, IE = 0): 50nA

ON Characteristics
DC Current Gain (hFE) (IC = 2.0mA, VCE = 10V): 300 (max)
Collector-Emitter Saturation Voltage: 0.5V

Small Signal Characteristics
Output Capacitance: 3.5pF

Thermal Characteristics:
Total Device Dissipation: 625mW
Thermal Resistance, Junction to Case: 83.3 Deg C/W
Thermal Resistance, Junction to Ambient: 200 Deg C/W

Manufactured by: National Semiconductor
Part Number: MPS6514

For reference only, we are providing a datasheet for this part number. Please note that Fairchild was acquired by National Semiconductor. West Florida Components assumes no liability for this information.

Full Datasheet: National Semi Bipolar (BJT) Transistors 200mA 25V
