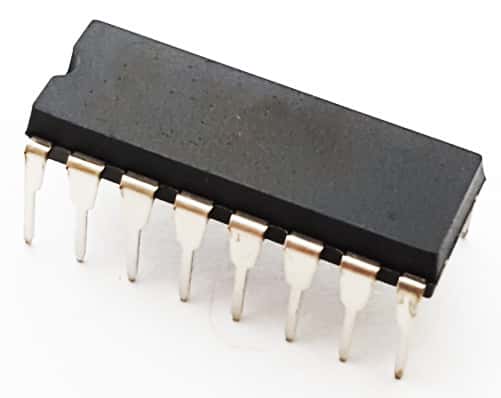

HEF4051BP 8-Channel Analog Multiplexer/Demultiplexer IC NXP

HEF4051BP 8-Channel Analog Multiplexer/Demultiplexer IC NXP

Manufacturer: NXP
Part Number: HEF4051BP
Voltage: 15
Watts: .75
Package: PDIP
Number Leads/Terminals: 16
Color: Black
Temperature: 125
Shape: Rectangle
Termination Method: Solder

Price: $0.65
189 available for immediate delivery
Code: T751APQ04
Weight: 0.02oz ONZ
Volume Pricing
Quantity Price Each
1-99$0.65
100+$0.55
