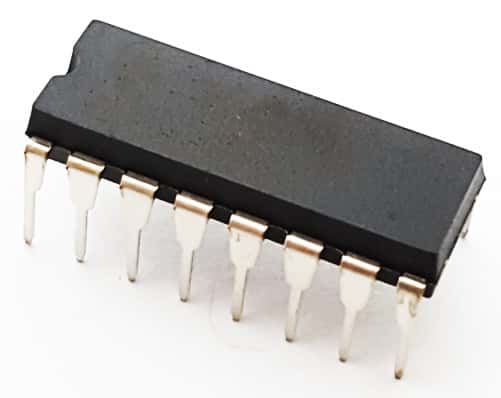

DG409DJ Dual 4-Channel Analog Multiplexer CMOS IC Vishay Siliconix

DG409DJ Dual 4-Channel Analog Multiplexer CMOS IC Vishay Siliconix

Manufacturer: Vishay/Siliconix
Part Number: DG409DJ
Watts: .45
Package: PDIP
Mounting: Through Hole
Number Leads/Terminals: 16
Color: Black
Temperature: 85
Shape: Rectangle
Termination Method: Solder

Price: $2.00
39 available for immediate delivery
Code: T753APQ04
Weight: 0.03oz ONZ
