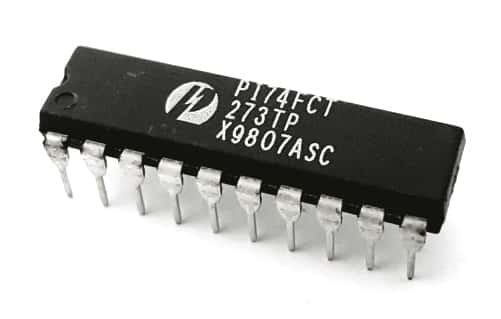

PI74FCT273TP Octal D Flip Flop Fast CMOS Logic IC Pericom
Manufacturer: Pericom
Part Number: PI74FCT273TP
Amps: .12
Voltage: -.5 to 7
Watts: .5
Ohms: 25
Package: CDIP
Mounting: Through Hole
Number Leads/Terminals: 20
Material: Ceramic
Color: Black
Temperature: 85
Obsolete: Yes
Shape: Rectangle
Termination Method: Solder
Price: $3.25
144 available for immediate delivery
Code: T757APQ05
Weight: 0.05oz
Additional Information
Fast CMOS Octal D Flip Flop Logic ICsFeatures:
- PI74FCT273/2273T is pin compatible with bipolar FASTâ„¢ Series at a higher speed and lower power consumption
- 25 ohm series resistor on all outputs (FCT2XXX only)
- TTL input and output levels
- Low ground bounce outputs
- Extremely low static power
- Hysteresis on all inputs
Maximum Ratings
Supply Voltage to Ground Potential (Inputs & Vcc Only): -0.5 to 7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only): -0.5 to 7.0V
DC Input Voltage: -0.5 to 7.0V
DC Output Current: 120mA
Power Dissipation: 0.5W
Ambient Temperature with Power Applied: -40 to 85 Degrees C
Manufactured by: Pericom
Part Number: PI74FCT273TP
Full Datasheet: Pericom FCT Series 25 Ohm Octal D Flip Flop Logic IC
