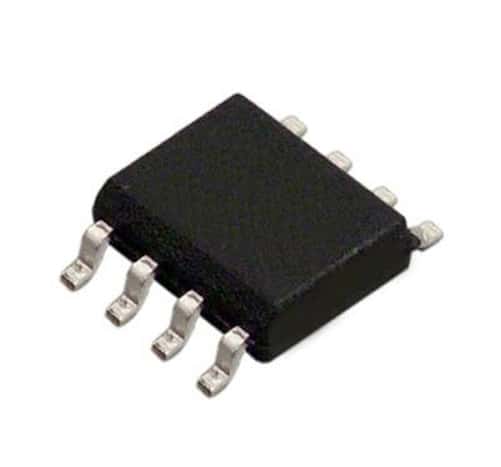

AT93C46R-10SC 1Kb 2MHz 3-Wire Serial EEPROM SMT IC Atmel

AT93C46R-10SC 1Kb 2MHz 3-Wire Serial EEPROM SMT IC Atmel

Manufacturer: Atmel
Part Number: AT93C46R-10SC
Voltage: 4.5 - 5.5
Package: SOIC
Mounting: Surface Mount
Number Leads/Terminals: 8
Color: Black
Temperature: 70
Shape: Rectangle
Termination Method: Solder

Price: $1.25
2997 available for immediate delivery
Code: T766APQ05
Weight: 0.01oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Surface Mount 3-Wire Serial EEPROM ICs

Features:
- User-selectable Internal Organization: 1K: 128 x 8 or 64 x 16
- 3-wire Serial Interface
- 2 MHz Clock Rate (5V) Compatibility
- Self-timed Write Cycle (10 ms max)
- High Reliability
-- Endurance: 1 Million Write Cycles
-- Data Retention: 100 Years
-- ESD Protection: >4000V

Supply Voltage: 4.5 to 5.5V
Supply Current (VCC = 5.0V) Read/Write @ 1MHz: 2.0mA (max)
Input and Output Leakage Current (Vin = 0V to VCC): 0.1uA (typ)
Input Low Voltage: -.06V to 0.8
Input High Voltage: 2.0 to Vcc + 1
Output Low Voltage (IOL = .15 mA): 0.2V max.
Output High Voltage (IOH = 100uA): Vcc - 0.2V min. Write Cycle Time-Word, Page: 10ms

Manufactured by: Atmel
Part Number: AT93C46R-10SC

Full Datasheet: Atmel 8-Pin SMD SOIC EEPROM AT93C46R-10SC
