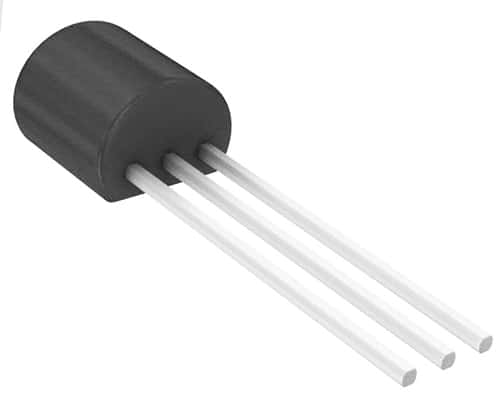

PN4118 50mA -40V N-Channel JFET Transistor Calogic

PN4118 50mA -40V N-Channel JFET Transistor Calogic

Manufacturer: Calogic
Part Number: PN4118
Amps: .05
Voltage: -40
Watts: .3
Package: TO-92
Mounting: Through Hole
Lead/Terminal Type: Straight
Number Leads/Terminals: 3
Color: Black
Temperature: 175
Obsolete: Yes
Termination Method: Solder

Price: $0.20
4930 available for immediate delivery
Code: T780APQ10
Weight: 0.01oz ONZ
