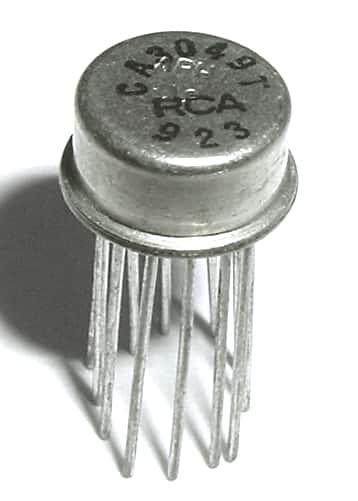

CA3049T 15V 40mA Bipolar Operational Amplifier Op Amp IC RCA

CA3049T 15V 40mA Bipolar Operational Amplifier Op Amp IC RCA

Manufacturer: RCA
Part Number: CA3049T
Amps: .05
Voltage: 15
Watts: .03
Package: Metal Can
Mounting: Through Hole
Number Leads/Terminals: 12
Color: Silver
Temperature: 175
Obsolete: Yes
Termination Method: Solder

Price: $10.00
24 available for immediate delivery
Code: T809APR01
Weight: 0.01oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Monolithic High Frequency Bipolar Op Amp ICs

Features:
- Power Gain (200MHz): 23dB typ.
- Noise Figure (200MHz): 4.8dB typ.
- 2 Differential Amplifiers on a Common Substrate
- Independently Accessible Inputs and Outputs
- Full Military Temperature Range: -55 to 125 Degrees C

Maximum Ratings
Collector-Emitter Voltage: 15.0V
Collector-Base Voltage: 20.0V
Collector-Substrate Voltage: 20.0V
Emitter-Base Voltage: 5.0V
Collector Current: 50mA
Power Dissipation (any one transistor): 300mW
Junction Temperature: 175 Degrees C

Applications:
- VHF Amplifiers and Mixers
- Balanced Quadrature Detectors
- Cascade Limiters
- Synthesizers

Manufactured by: RCA (Harris0
Part Number: CA3049T

Full Datasheet: RCA High Frequency Op Amp CA3049T
