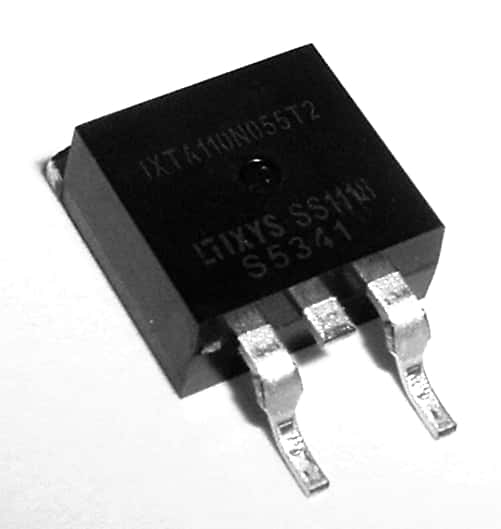

IXTA110N055T2 110A 55V TrenchT2™ Power MosFET IXYS®

IXTA110N055T2 110A 55V TrenchT2™ Power MosFET IXYS®

Manufacturer: IXYS
Part Number: IXTA110N055T2
Capacitance (uF): .00306
Amps: 110
Voltage: 55
Watts: 180
Ohms: .0066
Package: TO-263 (D-PAK)
Mounting: Through Hole
Lead/Terminal Type: Straight
Number Leads/Terminals: 3
Color: Black
Temperature: 175
Termination Method: Solder

Price: $2.00
150 available for immediate delivery
Code: T825APR07
Weight: 0.01oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

TrenchT2™ Power Transistors - MosFETS
N-Channel Enhancement Mode
Avalanche Rated

Maximum Ratings
Drain-Source Voltage: 55.0V
Gate-Source Voltage: +/- 20V
Drain Current-continuous@ TC=25 deg. C: 110A
Power Dissipation: 180W
Single Pulse Avalanche Energy: 400mJ
Max. Operating Temperature: 175°C

Drain-to-Source Breakdown Voltage: 55.0V
Gate Threshold Voltage: 2.0 - 4.0V
Drain-Source On-Resistance: 6.6mOhm (max)
Input Capacitance: 3060pF
Switching Time:
- Rise Time: 25ns
- Turn-On Time: 18ns
- Fall Time: 23ns
- Turn-Off Time: 40ns

Manufactured by: IXYS®
Part Number: IXTA110N055T2

Full Datasheet: IXYS® N-Channel Enhancement Mode Transistor 180W 110A 55V
