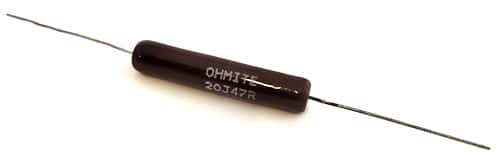

10W 47 Ohm 5% Power Wirewound Resistor Coated Ohmite® 20J47R
Manufacturer: Ohmite®
Part Number: 20J47R
Voltage: 720
Watts: 10
Ohms: 47
Tolerance (%): 5
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Material: Ceramic
Color: Brown
Shape: Round (Cylindrical)
Termination Method: Solder
Size (mm): 10 x 47.2
Price: $2.00
40 available for immediate delivery
Code: WW193BPV12
Weight: 0.20oz
Additional Information
Enamel Coated Wirewound ResistorsNew Old Stock
Features:
- Flame resistant lead free vitreous enamel coating.
- Withstands high humidity and temperature cycling.
- Durable construction, recommended for industrial applications where reliability is paramount.
- All-welded construction.
Material:
- Coating: Lead free vitreous enamel
- Core: Tubular Ceramic
Specifications:
Resistance: 47.0Ω
Power Rating: 10.0W
Voltage: 720V
Tolerance: 5%
Temperature Coefficient: +/-30 ppm/Deg. C
Dimensions:
Length: 47.2mm (1.86")
Diameter: 10.0mm (0.39")
Manufacturer by: Ohmite®
Part Number: 20J47R
Full Datasheet: Ohmite® 20 Series Wire Wound Resistor 10W 47 Ohm
