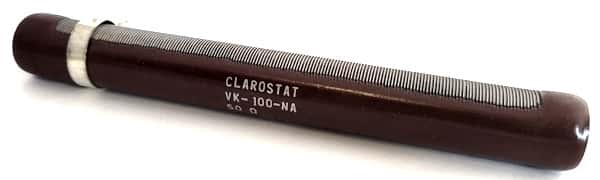

100W 50 Ohm 5% Power Wirewound Resistor Clarostat® VK1000NA-50

100W 50 Ohm 5% Power Wirewound Resistor Clarostat® VK1000NA-50

Manufacturer: Clarostat®
Part Number: VK100NA-50
Watts: 100
Ohms: 50
Tolerance (%): 5
Lead/Terminal Type: Lug
Number Leads/Terminals: 2 Fixed / 1 Adjustable
Material: Ceramic
Color: Brown
Obsolete: Yes
Shape: Round (Cylindrical)
Termination Method: Solder
Size (mm): 24.04 x 165

Price: $20.00
5 available for immediate delivery
Code: WW402BPV07
Weight: 3.40oz ONZ

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Power Wirewound Resistors
OBSOLETE

Features:
- Adjustable Slider Lug
- All Welded Construction
- Meets MIL-R-19365 Standards

Core: Tubular Ceramic
Coating: Vitreous Enamel
Terminals: Tinned, Lug

Power Rating: 100W
Resistance: 50.0Ω
Tolerance: 5%
Temperature Coefficient: +/-100ppm/°C

Dimensions (as measured):
Length: 165mm (6.5")
Outer Diameter: 24.04mm (0.834")
Inner Diameter: 13.11mm (0.516")

Manufactured by: Clarostat®
Part Number: VK100NA-50

Full Datasheet: Clarostat® VKA Series 100 Watt Tubular Wire Wound Resistor
