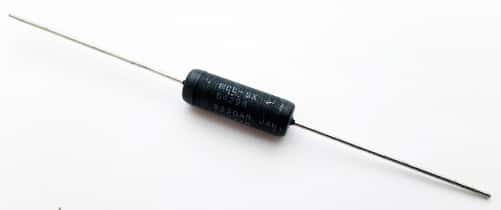

7W 13.3 ohm 1% Wirewound Resistor Military RCL-SX RWR84N13R3FR

7W 13.3 ohm 1% Wirewound Resistor Military RCL-SX RWR84N13R3FR

Manufacturer: WFC
Part Number: RWR84N13R3FR
Watts: 7
Ohms: 13.3
Tolerance (%): 1
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Color: Black
Temperature: 250
Military Spec: Yes
Termination Method: Solder

Price: $1.00
147 available for immediate delivery
Code: WW475APN07
Weight: 0.20oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

High Temperature Power Wire Wound Resistors
Military Qualified MIL-PRF-39007
Type RWR
Non-Inductive

Wire wound resistors are also known as power resistors. They are highly accurate. Wirewound resistors are constructed of a cylindrical core that is wrapped or wound with wire. The wire is a kind of resistance wire.

Features
- High Temperature Silicone Coating
- Complete Welded Construction
- Failure Rate: 0.01 %/1000 h

Power Rating: 7.0W
Resistance: 13.3 ohm
Tolerance: 1%
Temperature Coefficient: +/-20ppm deg. C
Operating Temperature: -55 to 250 deg. C

Dimensions
Length: 22.23mm (0.875")
Diameter: 7.92mm (0.312")

Manufactured by: WFC
Part Number: RWR84N13R3FR (RCL-SX)

Full Datasheet: Wirewound Resistor 7.0 Watt 13.3 ohm 1%
