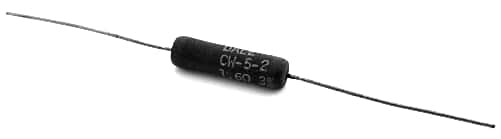

Power Wirewound Resistor 4W 1.6 ohm Dale® CW-5-2
Manufacturer: Dale® / Vishay®
Part Number: CW-5-2
Watts: 4
Ohms: 1.6
Tolerance (%): 3
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Color: Black
Temperature: 350
Shape: Round (Cylindrical)
Termination Method: Solder
Price: $1.00
90 available for immediate delivery
Code: WW485PD
|
Additional Information
Power Wire Wound Resistors
Commercial Coated
Axial Lead
Material:
Core: Ceramic
Coating: Special high temperature silicone
Standard Terminals: Tinned Copperweld®
End Caps: Stainless steel
Standard Electrical Specs:
Power Rating: 4 Watt
Resistance: 1.6 ohm
Tolerance: 3%
Technical Specs:
Temperature Coefficient: ± 50 ppm/°C
Short Time Overload: 10 times rated power for 5 sec
Terminal Strength: 10 lb min.
Approx. Dimensions:
- Length: 0.875 in. (22.22mm)
- Diameter: 0.25 in. (6.35mm)
- Lead Length: 1.5 in. (38.10mm)
- Lead Diameter: 0.032 in. (0.813mm)
Features:
High temperature silicone coating
Complete welded construction
Excellent stability in operation
High power to size ratio
Manufactured by: Dale® / Vishay®
Part Number: CW-5-2 1.6Ω 3%
Full Datasheet: CW-5-2
Please Note: Some datasheets show this series as 5W- please review the datasheets to determine if this resistor will work for you. The part is marked CW-5-2 1.6Ω 3%. Vishay Dale CW models have two power ratings, depending on operating temperature and stability requirements.(/B>
