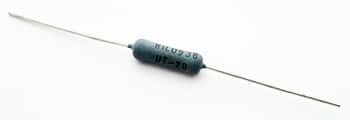

Power Wirewound Resistor 3W 1.5K Ohm Riedon UT-2B-1K5J1

Power Wirewound Resistor 3W 1.5K Ohm Riedon UT-2B-1K5J1

Manufacturer: Riedon
Part Number: UT-2B-1K5J1
Voltage: 140
Watts: 3
Ohms: 1500
Tolerance (%): 5
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Color: Grey
Temperature: 275
RoHS Compliant: Yes
Shape: Round (Cylindrical)
Termination Method: Solder

Price: $0.30
1384 available for immediate delivery
Code: WW505APN05
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.30
10-99$0.25
100+$0.20

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Power Wire Wound Resistors

Features:
- Silicon Coated
- Excellent Pulse Handling
- High Temperature: -55°C to +350°C (“V” Rating )
- Low TCR: ± 20ppm/K Standard

Power Rating: 3.0W
Resistance: 1.5K ohm
Tolerance: 5%
Maximum Working Voltage: 140V
Dielectric Strength: 1000VAC
Temperature Range: -55 deg. C to +275 deg. C

Maximum Dimensions:
Length: 14.2mm (0.56")
Diameter: 4.7mm (0.187")
Lead Length: 25.4mm (1.0")
Lead Diameter: 0.8mm (0.032")

Manufactured by: Riedon Inc.
Part Number: UT-2B-1K5J1

Full Datasheet: Riedon Wire Wound Resistor 3.0W 1.5K Ohms 5%

RoHS Compliant
