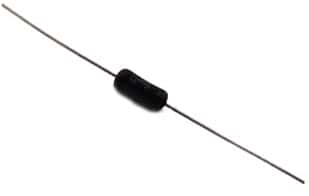

Power Wirewound Resistor 2.5W 10K ohm Dale CW-2C-14-10K

Power Wirewound Resistor 2.5W 10K ohm Dale CW-2C-14-10K

Manufacturer: Dale
Part Number: CW-2C-14-10K
Watts: 2.5
Ohms: 10000

Price: $0.90
20 available for immediate delivery
Code: WW515PD
Volume Pricing
Quantity Price Each
1-9$0.90
10+$0.85

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information


Power Wire Wound Resistors
Axial Lead

Typical Electrical Characteristics

Power Rating @ P25°C
(Vishay Dale CW models have two power ratings, depending on operating temperature and stability requirements)
- Characteristic U + 250 °C: 2.5W
- Characteristic V + 350 °C: 3.25W
Resistance: 10K ohm
Tolerance: 5%

Technical Specs:
Temperature Coefficient: ±30ppm/°C
Dielectric Withstanding Voltage: 1000Vac
Short Time Overload: 5 times rated power for 5 s
Terminal Strength: 10lbs min.

Approx. Dimensions:
- Length: .50 in. (12.7mm)
- Diameter: .218 in. (5.54mm)
- Lead Length: 1.5 in. (38.10mm)
- Lead Diameter: 0.032 in. (0.813mm)

Materials:
Coating: Special high temperature silicone
Standard Terminals: Tinned Copperweld®
End Caps: Stainless steel

Features:
High performance for low cost
High temperature silicone coating
Complete welded construction
Excellent stability in operation
High power to size ratio

Manufactured by: Dale (Vishay)
Part Number: CW-2C-14-10K 5%

Full Datasheet: CW-2C-14-10K 5%
