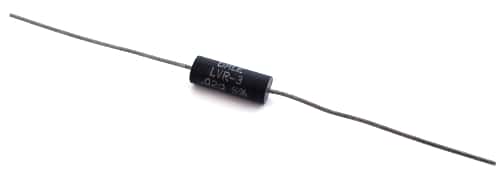

Power Wirewound Resistor 3W 0.02 ohm .02 ohm Dale® LVR-3

Power Wirewound Resistor 3W 0.02 ohm .02 ohm Dale® LVR-3

Manufacturer: Dale
Part Number: LVR-3
Watts: 3
Ohms: 0.02

Price: $0.75
30 available for immediate delivery
Code: WW545PD
Volume Pricing
Quantity Price Each
1-9$0.75
10-99$0.65
100+$0.50
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information


Precision Power Wirewound Resistors
Element: Self-supporting Nickel-chrome Alloy
Encapsulation: High Temperature Mold Compound
Terminals:
- Axial
- Tinned Copper
- Strength: 10lb min.

Dimensions:
Length: 0.560" (14.22mm)
Diameter: 0.205" (5.21mm)
Lead Length: 0.032" (0.813mm)

Technical Specifications:
Tolerance: 5%
Rated Power @ 25°C: 3W
Dielectric Withstanding Voltage: 1000V
Insulation Resistance: 10,000MΩ min. dry
Short Time Overload: 5 times rated power for 5s
Operating Temperature: -65°C to 275°C

Features:
Proprietary processing technique produces extremely low resistance values
Excellent Load Life Stability
Low Temperature Coefficient
Low Inductance
Cooler Operation for High Power to Size Ratio

Ideal for current sensing applications including switching and linear power supplies, instruments, and power amplifiers.

Manufactured by: Dale®
Part Number: LVR-3

Full Datasheet: 3W 0.02 ohm 5%
