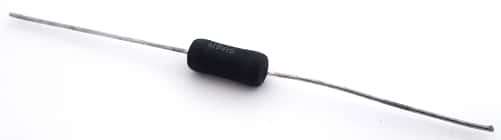

Power Wirewound Resistor 3W 68 ohm Dale® CW2C-1

Power Wirewound Resistor 3W 68 ohm Dale® CW2C-1

Manufacturer: Dale® / Vishay®
Part Number: CW2C-1
Watts: 3
Ohms: 68
Tolerance (%): 5
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Color: Black
Shape: Round (Cylindrical)
Termination Method: Solder

Price: $0.65
336 available for immediate delivery
Code: WW569PD
Volume Pricing
Quantity Price Each
1-9$0.65
10-99$0.60
100+$0.56
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information


Power Wire Wound Resistors
Axial Lead

Typical Electrical Characteristics

Power Rating
(Vishay Dale CW models have two power ratings, depending on operating temperature and stability requirements)
- Characteristic U + 250 deg C: 2.5W
- Characteristic V + 350 deg C: 3.25W
Resistance: 68 ohm
Tolerance: 5%

Technical Specs:
Temperature Coefficient: +/- 30ppm/ deg. C
Dielectric Withstanding Voltage: 1000Vac
Short Time Overload: 5 times rated power for 5 s
Terminal Strength: 10lbs min.

Approx. Dimensions:
- Length: .50 in. (12.7mm)
- Diameter: .218 in. (5.54mm)
- Lead Length: 1.5 in. (38.10mm)
- Lead Diameter: 0.032 in. (0.813mm)

Materials:
Coating: Special high temperature silicone
Standard Terminals: Tinned Copperweld
End Caps: Stainless steel

Features:
High performance for low cost
High temperature silicone coating
Complete welded construction
Excellent stability in operation
High power to size ratio

Manufactured by: Dale® (Vishay®)
Part Number: CW2C-1

Full Datasheet: CW2C-1
