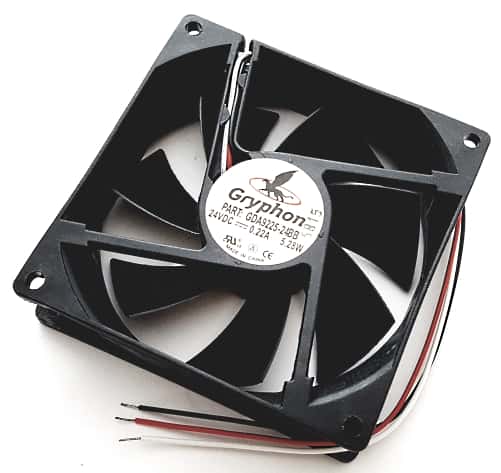

24V 0.22A Gryphon Series DC Fan Comair Rotron GDA9225-24BB

24V 0.22A Gryphon Series DC Fan Comair Rotron GDA9225-24BB

Manufacturer: Comair Rotron
Part Number: GDA9225-24BB
Amps: .22
Voltage: 24
Watts: 5.28
Lead/Terminal Type: Wire
Number Leads/Terminals: 3
Material: Thermoplastic
Color: Black
Temperature: 70
RoHS Compliant: Yes
Obsolete: Yes
Shape: Square
Size (mm): 92

Price: $15.75
94 available for immediate delivery
Code: X033APP10
Weight: 3.00oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

DC Tubeaxial Fans
Gryphon Series
7 Blade
3 Wire

Features:
- Open Collector Tachometer Wire (White)
- Two Ball Bearing Systems Per Fan
- Motor is impedance protected to prevent burn-out if obstructed
- High Performance
- High Reliability

Rated Voltage: 24.0V
Operating Voltage Range: 12.0V - 27.6V
Rated Current: 0.22A
Rated Input Power: 5.28W
Speed: 2800 RPM
Maximum Air Flow: m^3/hr: 93.5 (54.63 CFM)
Maximum Air Pressure: 3.34mm (0.13")
Noise: 32.96 dBa
Operating Temperature: -10 to 70 deg. C

Dimensions
Fan: 92mm x 92mm x 25mm (3.62" x 3.62" x 0.98")
Lead Wires:
- 26 AWG
- 210mm (8.27")

Manufactured by: Comair Rotron
Part Number: GDA9225-24BB

Full Datasheet: 92mm x 25mm Gryphon DC Fan 24V 0.22A 5.28W

RoHS Compliant
