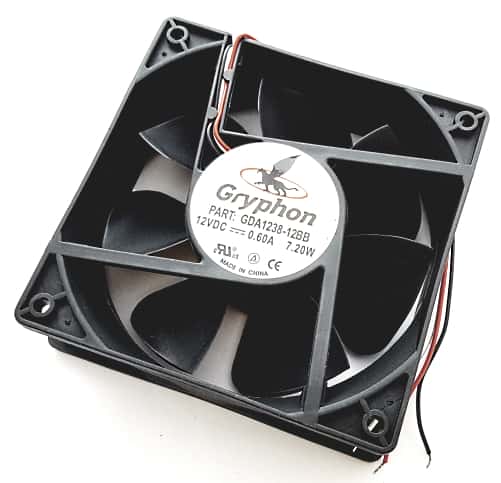

12V 0.60A Gryphon Series DC Fan Comair Rotron GDA1238-12BB

12V 0.60A Gryphon Series DC Fan Comair Rotron GDA1238-12BB

Manufacturer: Comair Rotron
Part Number: GDA1238-12BB
Amps: .60
Voltage: 12
Watts: 7.2
Lead/Terminal Type: Wire
Number Leads/Terminals: 3
Material: Thermoplastic
Color: Black
Temperature: 70
RoHS Compliant: Yes
Obsolete: Yes
Shape: Square
Size (mm): 120

Price: $15.00
25 available for immediate delivery
Code: X035APP10
Weight: 9.38oz ONZ

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

DC Tubeaxial Fans
Gryphon Series
7 Blade
3 Wire

Features:
- Open Collector Tachometer Wire (White)
- Two Ball Bearing Systems Per Fan
- Motor is impedance protected to prevent burn-out if obstructed
- Auto-restart feature, once obstruction removed

Rated Voltage: 12.0V
Operating Voltage Range: 6.0V - 13.8V
Rated Current: 0.60A
Rated Input Power: 7.20W
Speed: 3000 RPM
Maximum Air Flow: m^3/hr: 218.05 (128.27 CFM)
Maximum Air Pressure: 8.2mm (0.32")
Noise: 43.45 dBa
Operating Temperature: -10 to 70 deg. C

Dimensions
Fan: 120mm x 120mm x 38mm (4.72" x 4.72" x 1.50")
Lead Wires:
- 24 AWG
- 200mm (7.87")

Manufactured by: Comair Rotron
Part Number: GDA1238-12BB

Full Datasheet: 120mm x 38mm Gryphon DC Fan 12V 0.60A 7.2W

RoHS Compliant
