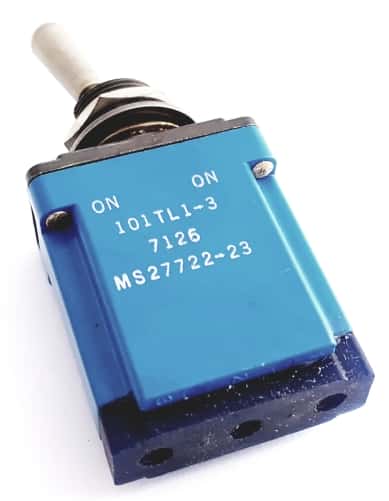

Toggle Switch 15A 125 VAC Micro Switch Honeywell 101TL1-3 MIL MS27722-23

Toggle Switch 15A 125 VAC Micro Switch Honeywell 101TL1-3 MIL MS27722-23

Manufacturer: Honeywell
Part Number: 101TL1-3
Amps: 15
Voltage (Vac): 125
Mounting: Panel
Lead/Terminal Type: IWTS
Number Leads/Terminals: 3
Color: Blue
Temperature: 71
Obsolete: Yes
Military Spec: Yes

Price: $45.00
5 available for immediate delivery
Code: X056APQ01
Weight: 1.50oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Micro Switch Military Toggle Switches
Vintage - New old Stock

SPDT
2 Position
On-On
IWTS Termination

UL and CSA Electrical Ratings (Rating Code L191)
- 15 amps, 125, 250, 277 Vac
- ½ Hp, 125 Vac
- 1 Hp, 250, 277 Vac
- 5 amps, 125 Vac “L”

Electrical Ratings (in amperes)(Rating Code 1)
- 0.5A @ 250Vdc,
- 0.75A @ 115 Vdc
- 0.5A to 15A @ 0.5Vac to 277Vac
- 0.5A to 20.0A @ 0.5Vdc to 28.0Vdc
Operating Temperature: -61 to +71 Deg. C.

Manufactured by: Honeywell
Part Number: 101TL1-3
Military Part Number: MS27722-23

Full Datasheet: Honeywell SPDT MIL Toggle Micro Switch TL Series
