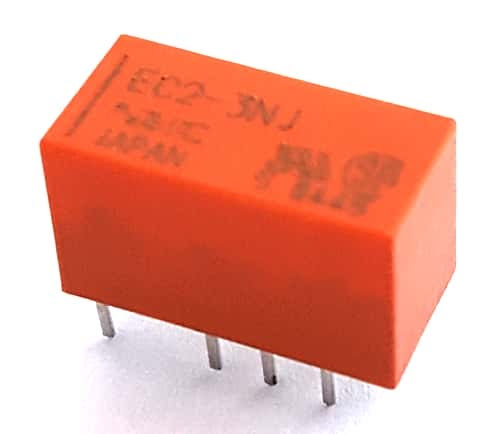

2A 3V Miniature Signal Relay DPDT Non-Latching NEC® EC2-3NJ

2A 3V Miniature Signal Relay DPDT Non-Latching NEC® EC2-3NJ

Manufacturer: NEC®
Part Number: EC2-3NJ
Amps: 2
Voltage: 3
Watts: .14
Ohms: 64.3
Mounting: Through Hole
Lead/Terminal Type: PCB Pin
Number Leads/Terminals: 8
Color: Orange
Temperature: 85
Shape: Rectangle
Termination Method: Solder

Price: $2.50
3952 available for immediate delivery
Code: X096APR09
Weight: 0.10oz ONZ
Volume Pricing
Quantity Price Each
1-9$2.50
10-99$2.00
100+$1.75
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Miniature Low Signal Relays
DPDT (2 Form C)

Features:
- Compact and Lightweight
- Low Power Consumption
- High-Breakdown Voltage of coil to contacts: 1500 Vac, 2500 V (rise time : 2 µs, fall time : 10 µs)
- Capable of High-power switching (700 Vac, 4.2 A, 4 times in case of accident)

Contact Specs:
Maximum Switching and Carrying Current: 2.0A
Maximum Switching Voltage: 220 Vdc, 250 Vac
Maximum Switching Power: 60 W, 125 VA
Initial Contact Resistance: 50mΩ
Nominal Operating Power: 140mW

Coil Specs:
Nominal Voltage: 3.0V
Coil Resistance: 64.3Ω
Must Operate Voltage: 2.25V
Must Release Voltage: 0.3V
Temperature: -40 to 85°C

Applications:
- Electronic Switching Systems
- PBX
- Terminal Equipment
- Telephone Systems

Manufactured by: NEC®
Part Number: EC2-3NJ

Full Datasheet: NEC® EC2 Series Mini Signal Relay 3.0V 2.0A
