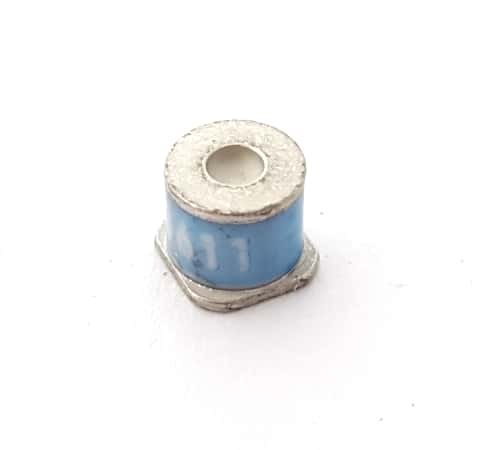

2035-09-SM-RPLF SMT Gas Discharge Tube Surge Protector Bourns®

2035-09-SM-RPLF SMT Gas Discharge Tube Surge Protector Bourns®

Manufacturer: Bourns®
Part Number: 2035-09-SM-RPLF
Amps: 5000
Voltage: 90
Package: Cylinder Square End
Mounting: Surface Mount
Color: Blue
Temperature: 85
RoHS Compliant: Yes

Price: $1.00
570 available for immediate delivery
Code: X106APR10
Weight: 0.02oz ONZ
Volume Pricing
Quantity Price Each
1-99$1.00
100+$0.70
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Precision Gas Discharge Tube Surge Protectors
Surface Mount
2-Pole

Features:
- Compact Size
- Low capacitance and insertion loss
- High surge current rating
- Stable breakdown throughout life

DC Sparkover: 90V (±15 %)
Impulse Sparkover
- 100V/us: 350V
- 1000V/us: 525V
Insulation Resistance: 10^10 ohm
Glow Voltage (10mA): ~70V
Arc Voltage (1.0A): ~10V
Glow-Arc Transition Current: <0.5A
Capacitance (1 MHz): <1 pF
Impulse Discharge Current (8/20us, >10 Operations): 5,000A
Operating Temperature: -55°C to 85°C

Dimensions:
Diameter: 4.79mm (0.188")
Height: 4.4mm (0.173")
Pad: 5.0mm (0.197")

Manufactured by: Bourns®
Part Number: 2035-09-SM-RPLF

Full Datasheet: Bourns® 2035-SM Series Miniture Gas Discharge Tube 5000A 90V

RoHS Compliant
