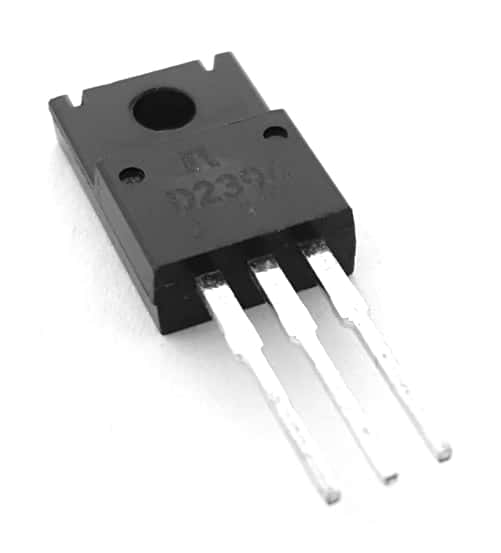

3A 60V Bipolar BJT NPN Transistor Rohm® 2SD2396K

3A 60V Bipolar BJT NPN Transistor Rohm® 2SD2396K

Manufacturer: Rohm®
Part Number: 2SD2396K
Capacitance (uF): .000055
Amps: 3
Voltage: 600
Watts: 2
Package: TO-220FN
Mounting: Through Hole
Lead/Terminal Type: Radial
Number Leads/Terminals: 3
Color: Black
Temperature: 150
Obsolete: Yes
Termination Method: Solder

Price: $1.50
180 available for immediate delivery
Code: X107APR10
Weight: 0.02oz ONZ
