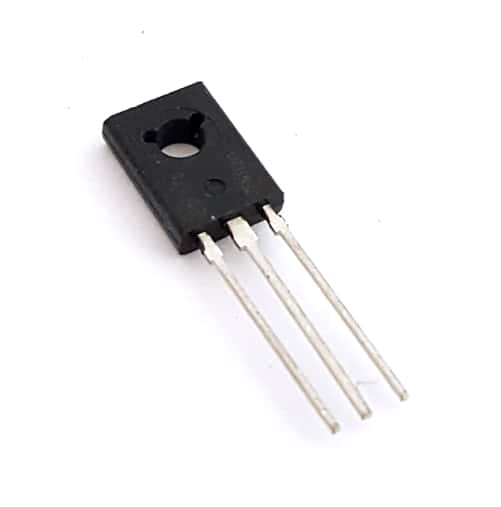

MJE802G 4A 80V NPN Bipolar Darlington Power Transistor ON Semiconductor®

MJE802G 4A 80V NPN Bipolar Darlington Power Transistor ON Semiconductor®

Manufacturer: ON Semiconductor®
Part Number: MJE802G
Amps: 4
Voltage: 80
Watts: 40
Package: TO-225A
Mounting: Through Hole
Number Leads/Terminals: 3
Color: Black
Temperature: 150
Termination Method: Solder

Price: $0.50
190 available for immediate delivery
Code: X109APR10
Weight: 0.05oz ONZ
