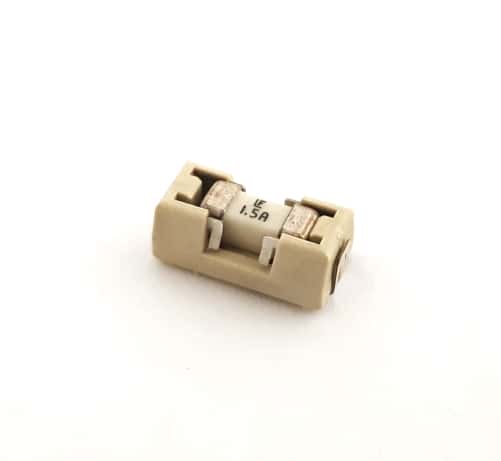

015401.5DR 1.5A Fast Acting Fuse and Holder Assembly Littelfuse®

015401.5DR 1.5A Fast Acting Fuse and Holder Assembly Littelfuse®

Manufacturer: Littelfuse®
Part Number: 015401.5DR
Amps: 1.5
Voltage: 125
Voltage (Vac): 125
Ohms: .063
Package: Fuse Block
Mounting: Surface Mount
Lead/Terminal Type: Solder Pad
Number Leads/Terminals: 2
Color: Tan
Temperature: 125
Shape: Rectangle
Termination Method: Solder

Price: $1.50
191 available for immediate delivery
Code: X123APS01
Weight: 0.03oz ONZ
Volume Pricing
Quantity Price Each
1-99$1.50
100+$1.40
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$29.95
$45.01
$90.00
$39.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information

Surface Mount Fuse and Fuse Holder Combination
154 Series OMNI-BLOK®

The OMNI-BLOK 154 Series makes installation and replacement of Nano2 surface mount fuses easier and more efficient. The combination fuse/holder can be installed on a PC board in one step. Fuses can be replaced without opening the PC board to the adverse effects of solder heat.

Fuse Included: 045301.5 (Very Fast Acting)
Fast-acting fuses open on overload and they short-circuit very quickly. Quick-acting fuses are not designed to withstand temporary overload currents which are associated with some electrical loads.

Features:
- Easy fuse replacement
- Miniature size
- Heat-resistant fuseholder: UL94V-0
- Low fuse temperature de-rating

Electrical Characteristics for Fuse:
Amp Rating: 1.5A
Maximum Voltage Rating: 125V
Interrupting Rating:
- 50A @ 125VAC/VDC
- 300A @ 32VDC
Nominal Cold Resistance: 0.0630 ohms
Nominal Melting I2t: 0.853 A2 sec.
Operating Temperature: -55 to 125°C

Overall Fuseblock Dimensions
Length: 9.73mm (0.383")
Width: 5.03mm (0.198")
Height: 3.81mm (0.150")

Manufactured by: Littelfuse®
Part Number: 015401.5DR (Fuse and Holder Combination)
Part Number: 045301.5 (Fuse)

Fuse and Holder Combination Datasheet: Littelfuse® 154 Series SMD Fuse and Holder Assembly
Replacement Fuse Datasheet: Fast Acting Nano Fuse 453 Series 1.5 Amp
