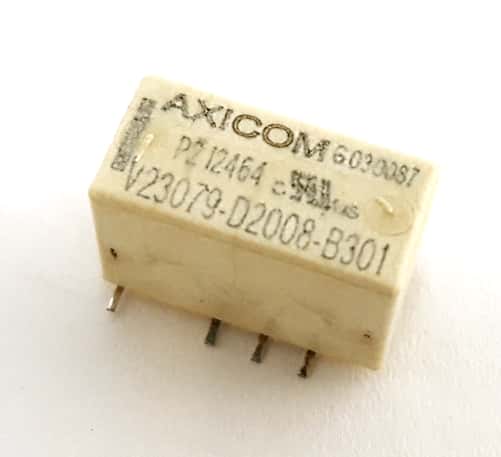

2.0A 3V SMT P2 General Purpose DPDT Relay Axicom® V23079-D2008-B301

2.0A 3V SMT P2 General Purpose DPDT Relay Axicom® V23079-D2008-B301

Manufacturer: Axicom®
Part Number: V23079-D2008-B301
Amps: 2
Voltage: 3
Watts: .14
Mounting: Surface Mount
Lead/Terminal Type: Gullwing
Number Leads/Terminals: 8
Color: Putty
Temperature: 85
Shape: Rectangle
Termination Method: Solder

Price: $1.75
400 available for immediate delivery
Code: X130APS01
Weight: 0.50oz ONZ
Volume Pricing
Quantity Price Each
1-99$1.75
100+$1.10
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Surface Mount P2 General Purpose Signal Relay
New Old StocK

Features:
- Non-Latching Monostable Coil
- Standard telecom relay (ringing and test access)
- 2 form C bifurcated contacts (2 changeover contacts, 2 CO)
- Immersion cleanable
- Operating Temperature: -40 to 85°C

CONTACT SPECS
Current Rating: 2.0A
Switching Voltage (max): 250VAC, 220VDC
Operate Time: 4.0ms
Release Time: 4.0ms

COIL Specs
Voltage: 3.0V
Must Operate Voltage: 2.25V
Must Release Voltage: 0.3V
Resistance: 64 Ohms
Power: 140mW

Applications:
- Voice over IP
- Office equipment
- Measurement and control equipment
- Automotive equipment as CAN bus & keyless entry
- Medical equipment
- Consumer electronics, set top boxes, HiFi

Manufactured by: Axicom (now TE Connectivity)
Part Number: V23079-D2008-B301

Full Datasheet: Axicom® V23079 Series SMD Signel Relay 2 Amp 3VDC
