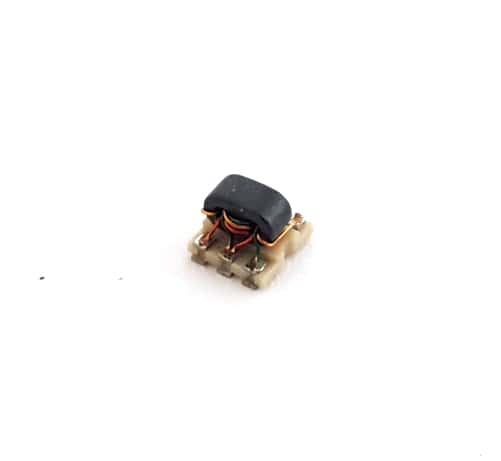

TCM4-1W 3.0MHz-800MHz 50 Ohm SMT RF Transformer Mini-Circuits®

TCM4-1W 3.0MHz-800MHz 50 Ohm SMT RF Transformer Mini-Circuits®

Manufacturer: Mini-Circuits®
Part Number: TCM4-1W
Amps: .03
Watts: .25
Ohms: 50
Package: DB714
Mounting: Surface Mount
Lead/Terminal Type: Solder Plate Leads
Number Leads/Terminals: 6
Temperature: 85
Shape: Rectangle
Termination Method: Solder

Price: $8.00
570 available for immediate delivery
Code: X147APS01
Weight: 0.01oz ONZ
