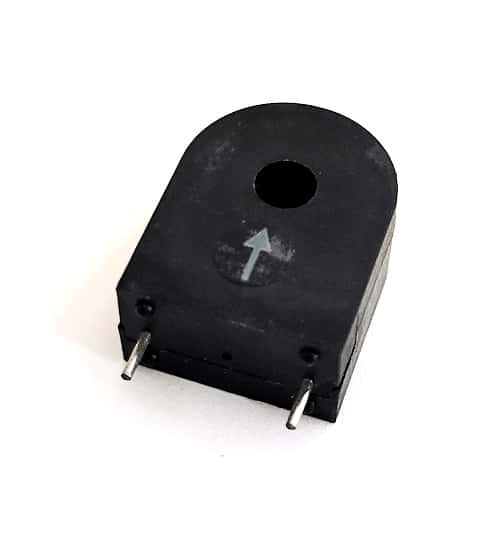

CST306-3A Current Sense Transformer 25A 55mH Triad Magnetics®

CST306-3A Current Sense Transformer 25A 55mH Triad Magnetics®

Manufacturer: Triad Magnetics®
Part Number: CST306-3A
Amps: 25
Ohms: 3.75
Mounting: Through Hole
Lead/Terminal Type: PC Pin
Number Leads/Terminals: 2
Color: Black
RoHS Compliant: Yes
Termination Method: Solder
Size (mm): 17.53 x 9.78 x 23.24

Price: $4.00
46 available for immediate delivery
Code: X269APW04
Weight: 0.68oz ONZ
