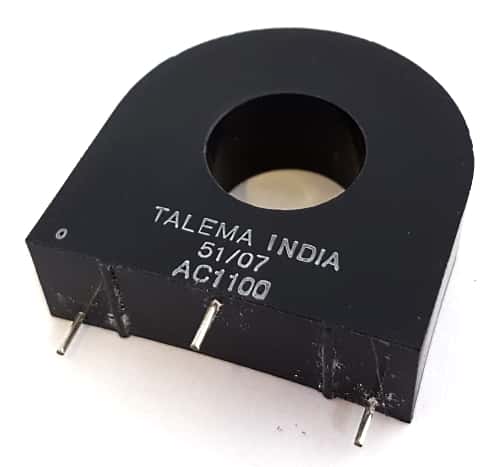

AC1100 100A 50/60Hz Current Sense Transformer Talema Group®

AC1100 100A 50/60Hz Current Sense Transformer Talema Group®

Manufacturer: Talema Group®
Part Number: AC1100
Amps: 100
Ohms: 21.3
Mounting: Through Hole
Lead/Terminal Type: PC Pin
Number Leads/Terminals: 3
Color: Black
RoHS Compliant: Yes
Termination Method: Solder
Size (mm): 44.5 x 19.05 x 44.5

Price: $10.00
Sorry, we are currently sold out of
'AC1100 100A 50/60Hz Current Sense Transformer Talema Group®'.
Please check back later.
Code: K261APT08
Weight: 2.62oz ONZ

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Current Sensing Transformers
Solid Core

Primary Current: 100A
Current Ratio: 1000:1
DC Resistance: 21.3 Ohms
Frequency Range: 50/60Hz

Dimensions
Width: 44.5mm (1.75")
Thickness: 14.3mm (0.56")
Seated Height: 44.5mm (1.75")
Hole Diameter: 19.05mm (0.75")

Applications
- Sensing Overload Current
- Ground fault detection
- Metering
- Analog to Digital Circuits

Manufactured by: Talema Group®
Part Number: AC1100

Full Datasheet: Talema Group® AC Series Current Transformer

RoHS Compliant
