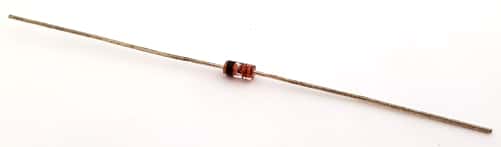

1N5231B 500mW 5.1V Silicon Zener Diode Microsemi®

1N5231B 500mW 5.1V Silicon Zener Diode Microsemi®

Manufacturer: Microsemi®
Part Number: 1N5231B
Amps: .2
Voltage: 5.1
Watts: .5
Ohms: 17
Package: DO-7
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Material: Glass
Color: Red / Black
Temperature: -65 to 200°C
Termination Method: Solder

Price: $0.20
4978 available for immediate delivery
Code: DI319PD
Volume Pricing
Quantity Price Each
1-9$0.20
10-99$0.18
100+$0.15

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$36.95
$45.01
$90.00
$45.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information


Silicon Zener Diodes

Case: Hermetically Sealed Glass, DO-7
Finish: External Surfaces Corrosion Resistant
Leads: Axial, Readily Solderable
Polarity: Banded End Positive

Max. Ratings:
DC Power Dissipation: 500mW
Power Derating: 3.33mW/C° above 25°C
Forward Voltage: 1.1V @ 200mA
Operating & Storage Temp: -65 to 200°C

Electrical Characteristics (TA=25°C unless otherwise noted):
Tolerance: 5%
Nominal Zener Voltage: 5.1V @ 20mA
Max. Zener Impedance: 17Ω @ 20mA
Max. Zener Knee Impedance: 1600Ω @ 0.25mA
Max. Reverse Leakage: 5uA @ 2V

Manufactured by: Microsemi®
Part number: 1N5231B

Full datasheet: 1N5231B
