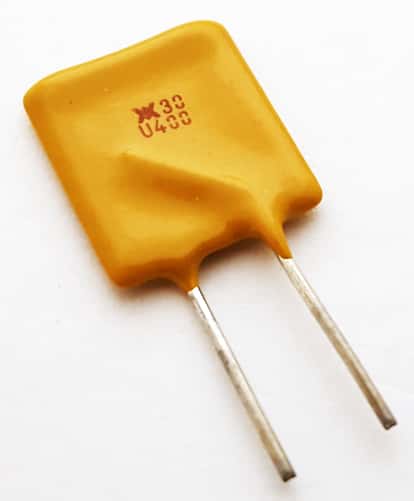

4A 30V 40A Imax PolySwitch Fuse Raychem RUE400

4A 30V 40A Imax PolySwitch Fuse Raychem RUE400

Manufacturer: Raychem
Part Number: RUE400

Price: $0.45
Sorry, we are currently sold out of
'4A 30V 40A Imax PolySwitch Fuse Raychem RUE400'.
Please check back later.
Code: F066PD12
Volume Pricing
Quantity Price Each
1-9$0.45
10-99$0.42
100+$0.38
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$29.95
$45.01
$90.00
$39.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information


Resettable PolySwitch Fuses
Obsolete

MATERIALS:
Insulating:
- Cured, Flame Retarded Epoxy Polymer
- Meets UL94 V-0 Requirements
Lead:
- 24 AWG Tin Lead Plated Copper

ELECTRICAL RATINGS
- Voltage: 30V max.
- Current: 40A max.

PERFORMANCE RATINGS
Current Ratings
- @ 0 deg. C: Hold 4.6A ; Trip 9.2A
- @20 deg. C: Hold 4.0A ; Trip 8.0A
- @60 deg. C: Hold 2.4A ; Trip 4.8A
Time to Trip (@ 20 deg. C, 20.0A): 12.7 sec max.
Initial Resistance @ 20 deg. C: 0.01 ohm min. ; 0.03 ohm max.
1 Hr Post Trip Resistance @ 20 deg. C: 0.05 ohms max.
Tripped State Power Dissipation @ 20 deg. C: 2.5W nom.

DIMENSIONS:
Approx. Total Height: 27.7mm (1.09")
Width: 14.0mm (.55") max.
Thickness: 3.0mm (.12") max.
Lead Space: 4.3mm to 5.8mm (.17" to .23")

Manufactured by: Raychem (Tyco)
Part Number: RUE400

Full Datasheet: RUE400
