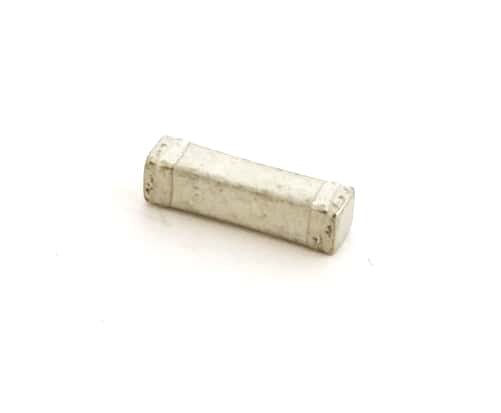

2A 250V Surface Mount Time Delay Acting Fuse TR2-1025TD2A

2A 250V Surface Mount Time Delay Acting Fuse TR2-1025TD2A

Manufacturer: Bussmann
Part Number: TR2-1025TD2A

Price: $1.05
2450 available for immediate delivery
Code: F070PD
Volume Pricing
Quantity Price Each
1-9$1.05
10-99$0.95
100+$0.85

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$36.95
$45.01
$90.00
$45.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information


Surface Mount Time Delay Acting Fuses

Features:
Time-delay surface mount fuse
Satisfies the EIA/IS-722 Standard
Solder immersion compatible

Electrical Characteristics:
100% of Amp Rating = 4 Hrs min. Opening time
200% of Amp Rating = 1 Sec. min. Opening time
200% of Amp Rating = 60 sec. max. Opening Time
250% of Amp Rating = 10 sec. max. Opening time

Specifications:
Current Rating: 2A
Voltage Rating: 250Vac ; 125Vdc
Interrupting Rating:
- 50A @ 250Vac
- 50A @ 125Vdc
Typical DC Cold Resistance: 0.068 ohms
Typical Melting I2t: 17.27
Typical Voltage Drop: 250mV

Dimensions:
Length: 10.29mm � .20mm
Width: 1.4mm �.25mm
Height: 1.4mm � .25mm

Manufactured by: Cooper Bussmann
Part Number: TR2/1025TD2A

Full Datasheet: TR2/1025TD2A
