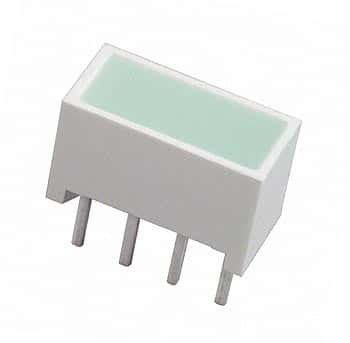

Rectangle LED Bar Module Green Hewlett Packard HLMP-2500

Rectangle LED Bar Module Green Hewlett Packard HLMP-2500

Manufacturer: Hewlett Packard
Part Number: HLMP-2500
Package: Bar
Lead/Terminal Type: Radial
Number Leads/Terminals: 4
Color: Green

Price: $1.25
275 available for immediate delivery
Code: G404APF05
Weight: 0.02oz ONZ
Volume Pricing
Quantity Price Each
1-9$1.25
10-99$1.15
100+$1.00
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Rectangular LED Light Bar Display

Color: Green
Size of Light Emitting Area: 8.89mm x 3.81mm (0.35" x 0.15")

Maximum Ratings:
Average Power Dissipated per LED Chip: 135mW
Peak Forward Current per LED Chip: 90mA
Average Forward Current per LED Chip: 25mA
DC Forward Current per LED Chip: 30mA
Reverse Voltage per LED Chip: 6V
Operating Temperature: -20 deg. C to +85 deg. C

Electrical/Optical Characteristics:
(Typical unless otherwise noted ; @ TA = 25deg. C)
Luminous Intensity per Lighting Emitting Area(IF=20 mA): 25mcd
Peak Wavelength: 565nm
Dominant Wavelength: 572nm
Forward Voltage per LED(IF=20 mA): 2.2V
Reverse Breakdown Voltage per LED(IF=20 mA): 15V
Thermal Resistance LED Junction-to-Pin: 150 deg. C/W/LED

Dimensions: 1.16mm x 4.95mm x 6.22mm (0.40" x 0.20" x0.25")

Applications:
Business Machine Message Annunciators
Telecommunications Indicators
Front Panel Process Status Indicators
PC Board Identifiers
Bar Graphs

Manufactured by: Hewlett-Packard (Agilent)
Part number: HLMP-2500

Full Datasheet: HP LED Green Bar HLMP-2500
