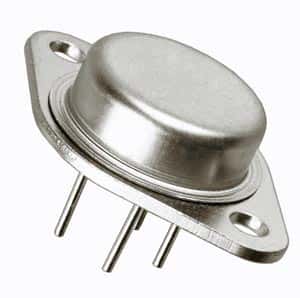

LT1072MK High Efficiency Switching Regulator Linear Technology

LT1072MK High Efficiency Switching Regulator Linear Technology

Manufacturer: Linear Technology
Part Number: LT1072MK
Amps: 1.25
Voltage: 40
Package: TO-3
Lead/Terminal Type: Through Hole
Number Leads/Terminals: 4
Material: Metal
Obsolete: Yes

Price: $60.00
Sorry, we are currently sold out of
'LT1072MK High Efficiency Switching Regulator Linear Technology'.
Please check back later.
Code: IC643APH02
Weight: 0.50oz ONZ
Volume Pricing
Quantity Price Each
1-9$60.00
10+$55.00
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

High Efficiency Switching Regulators

The LT1072 is a monolithic high power switching regulator. There are some features found on this part that are not found on other low power control chips which are much more difficult use. An adaptive anti-sat switch drive which allows wide ranging load currents without efficiency loss. Total power supply current is reduced to 50uA with an externally activated shutdown mode. Completely isolated and regulated outputs are made possible by using the optional "flyback regulation mode" which is built into the LT1072.

Features:
- Low Quiescent Current—6mA
- Internal 1.25A Switch
- Very Few External Parts Required
- Self-Protected Against Overloads
- Operates in Nearly All Switching Topologies

Maximum Ratings
Supply Voltage: 40V
Switch Output Voltage: 65V
Feedback Pin Voltage (Transient, 1ms): ±15V
Operating Junction Temperature Range: -55°Co 150°C

Typical Electrical Characteristics
(over full operating temperature range, VIN = 15V, VC = 0.5V, VFB = VREF, output pin open unless otherwise noted):

Reference Voltage (Measured at Feedback Pin VC = 0.8V): 1.244V
Feedback Input Current (VFB = VREF): 1100nA max.
Reference Voltage Line Regulation (3V ≤ VIN ≤ VMAX VC = 0.8V): 0.03%/V max.
Minimum Input Voltage: 2.6V
Supply Current (3V ≤ VIN ≤ VMAX, VC = 0.6V): 6mA
Flyback Reference Voltage (lFB = 50uA): 18.0V max
Flyback Amplifier Transconductance (gm)(ΔIC = ±10uA): 300umho
Output Switch Breakdown Voltage (3V ≤ VIN ≤ VMAX ISW = 1.5mA): 90V
Output Switch ON Resistance (ISW = 1.25A): 0.6Ω
Switching Frequency: 47kHz max.
Shutdown Mode Supply Current (3V ≤ VIN ≤ VMAX VC = 0.05V): 100uA

Applications:
- Logic Supply 5V at 2.5A
- 5V Logic to ±15V Op Amp Supply
- Offline Converter up to 50W
- Battery Upconverter
- Power lnverter (+ to –) or (– to +)
- Fully Floating Multiple Outputs
- Driver for High Current Supplies

Manufactured by: Linear Technology
Part Number: LT1072MK

Full Datasheet: Switching Voltage Regulator LT1072MK Linear Tech
