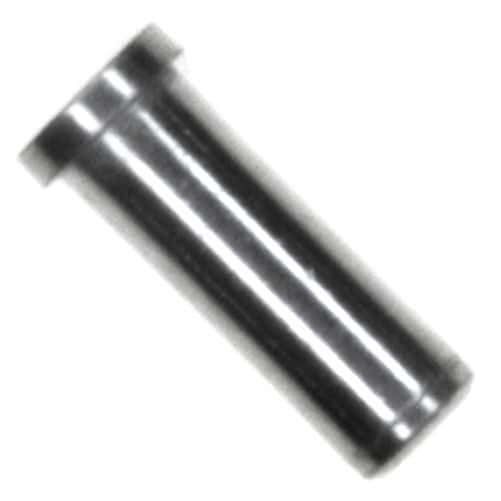

Machined Pin Receptacle PCB Socket Mil-Max 0329-0-15-01-34-14-10-0

Machined Pin Receptacle PCB Socket Mil-Max 0329-0-15-01-34-14-10-0

Part Number: 0329-0-15-01-34-14-10-0
Amps: 8
Mounting: Press Fit PCB
Number Leads/Terminals: 1
Color: Silver
Shape: Round (Cylindrical)

Price: $1.00
875 available for immediate delivery
Code: IC832APP04
Weight: 0.01oz ONZ

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$36.95
$45.01
$90.00
$45.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information

Single Pin Receptacle with No Tail
Solder mount in 0.075" min. mounting hole

Pin receptacles are sometimes referred to as PCB sockets, micro-plugs or connector jacks, machined pin receptacles. They are known for their reliability and versatility.

Features:
- 2 Piece Construction:
-- Precision machined outer shell
-- Internal beryllium copper contact
- Knock-Out Bottom
- Low contact resistance
- Gas tight connection and mating interface
- High mechanical life without degradation of insertion/withdrawal force
- Excellent performance under shock and vibration

Current Rating: 8.0A
Shell Plating: 200-300 u" Tin/Lead over Nickel
Contact Type: #34 Standard 4 finger
Contact Material: Beryllium Copper Alloy
Contact Plating: 10 u" Gold over Nickel
Lead Diameter Accepted: 0.81mm to 1.17mm (0.032" to 0.046"

Manufactured by: Mil-Max
Part Number: 0329-0-15-01-34-14-10-0

Full Datasheet: Machined Pin Receptacle No Tail
