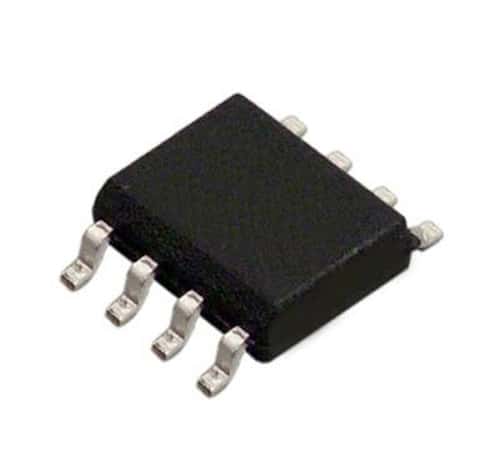

AOZ1050PI 2A Adjustable Buck Voltage Regulator IC Alpha & Omega Semiconductor

AOZ1050PI 2A Adjustable Buck Voltage Regulator IC Alpha & Omega Semiconductor

Manufacturer: Alpha & Omega Semiconductor
Part Number: AOZ1050PI
Amps: 2
Package: SOIC
Mounting: Surface Mount
Lead/Terminal Type: Gull Wing
Number Leads/Terminals: 8
Color: Black
Temperature: 85
RoHS Compliant: Yes
Shape: Rectangle
Termination Method: Solder

Price: $0.75
23992 available for immediate delivery
Code: IC872APP06
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-999$0.75
1000+$0.32

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$36.95
$45.01
$90.00
$45.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information

Synchronous Buck Regulator ICs
EZBuck (TM) Series
NOT Recommended for New Designs

Configuration: Positive
Type: Adjustable
Function: Step-Down

Features:
- Synchronous Buck: 80 mΩ internal high-side switch and 50 mΩ internal low-side switch (at 12 V)
- External Soft Start
- Output Voltage Adjustable to 0.8V
- 2A Continuous Output Current
- 500kHz PWM Operation
- Cycle by Cycle Current Limit
- Pre Bias Start-up
- Short Circuit Protection

Recommended Operating Conditions
Supply Voltage (VIN): 4.5 to 18.0V
Output Voltage Range: 0.8 V to 0.85 VIN
Ambient Temperature (TA): -40 to 85 Deg. C.
Thermal Resistance: 50 Deg. C/W

Applications:
- Point of Load DC/DC Converters
- LCD TV
- Set top boxes
- DVD and Blu-ray players/recorders
- Cable modems

Manufactured by: Alpha & Omega Semiconductor
Part Number: AOZ1050PI

Full Datasheet: Positive Adjustable Voltage Regulator 2.0A AOZ1050PI

RoHS Compliant
