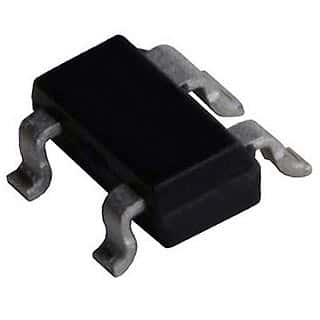

BF998 Dual Gate Mosfet Transistor Philips

BF998 Dual Gate Mosfet Transistor Philips

Manufacturer: Philips
Part Number: BF998
Package: SOT143
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 4

Price: $0.50
1698 available for immediate delivery
Code: J307APF08
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.50
10-99$0.45
100-499$0.40
500+$0.35
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$29.95
$45.01
$90.00
$39.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information

Dual Gate MosFET Transistors
Silicon N-Channel

Features:
- Short channel transistor with high forward transfer admittance to input capacitance ratio
- Low noise gain controlled amplifier up to 1 GHz.

Drain-Source Voltage: 12.0V max.
Drain Current: 30mA max.
Total Power Dissipation: 200mW max.
Forward Transfer Admittance: 24mS typ.
Input Capacitance @ Gate 1: 2.1pF typ..
Reverse Transfer Capacitance (f = 1MHz): 25pF typ.
Noise Figure (f = 800MHz): 1.0dB typ.
Operating Junction Temperature: 150°C max.

Static Characteristics (Tj = 25°C unless otherwise specified)
Gate 1-Source Breakdown Voltage (VG2-S = VDS = 0; IG1-SS = ±10 mA): 6.0V min. ; 20.0V max.
Gate 2-Source Breakdown Voltage (VG1-S = VDS = 0; IG2-SS = ±10 mA): 6.0V min. ; 20.0V max.
Gate 1-Source Cut-Off Voltage (VG2-S = 4.0V; VDS = 8.0V; ID = 20uA): 2.0V max.
Gate 2-Source Cut-Off Voltage (VG1-S = 0; VDS = 8.0V; ID = 20uA): 1.5V max.
Gate 1 Cut-Off Current (VG2-S = VDS = 0; VG1-S = ±5 V): 50nA max.
Gate 2 Cut-Off Current (VG1-S = VDS = 0; VG2-S = ±5 V): 50nA max.

Applications:
VHF and UHF applications with 12 V supply voltage
- Television Tuners
- Professional Communications Equipment

Manufactured by: Philips
Part Number: BF998

Full Datasheet: Philips Mosfet BF998
