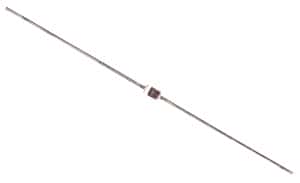

BYD43-20 6A 2000V Fast Soft Recovery Rectifier Diode Philips

BYD43-20 6A 2000V Fast Soft Recovery Rectifier Diode Philips

Manufacturer: Philips
Part Number: BYD43-20
Amps: 6
Voltage: 2000
Package: SOD-81
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Material: Glass

Price: $0.12
45 available for immediate delivery
Code: J438APF10
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.12
10-99$0.10
100+$0.08

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$36.95
$45.01
$90.00
$45.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information

Fast Soft-Recovery Rectifier Diodes

Features:
- Glass Passivated
- High Maximum Operating Temperature
- Low Leakage Current
- Excellent Stability

Maximum Ratings
Non-repetitive peak reverse voltage: 2100V
Repetitive peak reverse voltage: 2000V
Average forward current (Ttp = 55�C, lead length = 10mm, averaged over any 20ms period): 0.68A
Average forward current (Tamb = 65�C, PCB mounting, averaged over any 20ms period): 0.30A
Repetitive peak forward current (Ttp = 55�C): 6.0A
Repetitive peak forward current (Tamb = 65�C): 3.2A
Non-repetitive peak forward current (t = 10ms half sinewave, Tj = Tjmax prior to surge, VR = VRRmax): 6.0A
Storage and Junction Temperature: -65�C to 175�C

Electrical Characteristics (TJ=25�C unless otherwise noted):
Forward voltage
- IF = 1.0A, Tj = Tj max): 2.05V max.
- IF = 1.0A: 2.4V max.
Reverse current
- VR = VRRMmax: 5.0uA max.
- VR = VRRMmax, Tj = 125�C: 50uA max.
Reverse recovery time (when switched from IF = 0.5 A to IR = 1 A;measured at IR = 0.25 A): 300ns max.
Diode capacitance (f = 1 MHz; VR = 0 V): 15.0pF typ.
Maximum slope of reverse recovery current
(when switched from IF = 1 A to VR ≥ 30V and dlf/dt = -1A/us): 5.0A/us

Manufactured by: Philips
Part Number: BYD43-20
