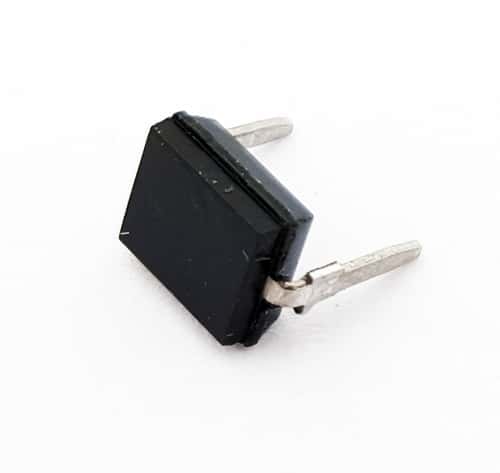

BP104 Silicon PIN Photodiode
Price: $0.40
2829 available for immediate delivery
Code: LED060
|
Additional Information
Description:BP104 is a high speed and high sensitive PIN photodiode in a miniature flat plastic package. Its top view construction makes it ideal as a low cost replacement of TO-5 devices in many applications.
The epoxy package itself is an IR filter, spectrally matched to GaAs or GaAs on GaAlAs IR emitters (λp = 950 nm). The large active area combined with a flat case gives a high sensitivity at a wide viewing angle.
Features:
Large radiant sensitive area (A = 7.5 mm2)
Wide angle of half sensitivity: ϕ = � 65�
High photo sensitivity
Fast response times
Small junction capacitance
Applications:
High speed photo detector
Specs:
Lens Type: Epoxy
Peak Wavelength: 985nm
Maximum Reverse Voltage: 60V
Maximum Power Dissipation: 215mW
Maximum Light Current: 45 uA (typ)
Maximum Dark Current: 30 nA
Maximum Rise Time: 100 ns (typ)
Maximum Fall Time: 100 ns (typ)
Package: TO-5
Maximum Operating Temperature: 100�C Polarity: Forward
Manufactured by: Vishay
Part Number: BP104
Full Datasheet BP104
