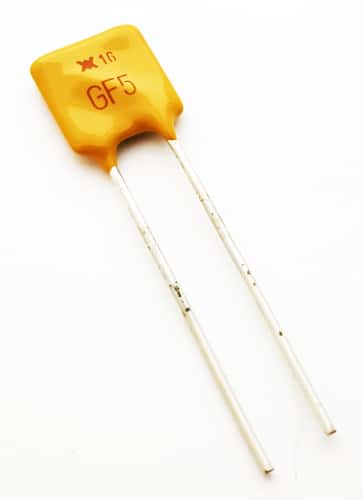

5A 16V Automotive Polyswitch Fuse Raychem AGRF500S-1.0

5A 16V Automotive Polyswitch Fuse Raychem AGRF500S-1.0

Manufacturer: Raychem
Part Number: AGRF500S-1.0
Amps: 5
Voltage: 16
Watts: 2.7
Mounting: Through Hole
Lead/Terminal Type: Radial
Number Leads/Terminals: 2
Color: Mustard
Temperature: 125
RoHS Compliant: Yes
Obsolete: Yes
Shape: Rectangle
Termination Method: Solder

Price: $0.50
2000 available for immediate delivery
Code: N048APN05
Weight: 0.10oz ONZ
